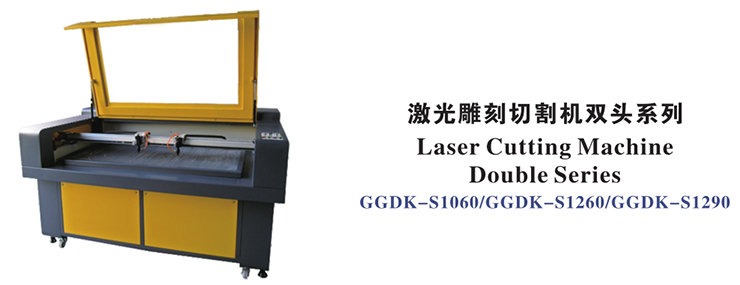

Laser cutting machine

■ Equipment Performance

USB offline/online, reading U flash, the double guide rail, step drive, belt transmission, tube feeding, coaxial infrared ray indicating position, up&down worktable, the honey-comb striation, the circulation of water cooling, the hydraulicprotection, exclusionof dust and smoke，inflatable protection, the proprietarysoftware which supports the output of various files format: PLT, BMP, DXF, DST,T100.

■ Applicable fields

Advertising industry, decoration, furniture, model manufacturing, and handicraft industry. The machine is widely applied in the fina engraving, cutting andhollowing out on nonmetallic materials like acrylic, organic board, double color plate, plank, bamboo product, paper, glass, etc, With all kinds of characters,graphs, images, trademarks and so on.

■ Optional configuration

Red-light locating system; Rotary device.

■ Main technical parameters

Type specification      GGDK-S1060/GGDK-S1260/GGDK-S1290

Laser power               60W 80W
Connecting way         USB online / offline reading U flash
Working platform size      1000x600mm 1250x600mm 1250x900mm
Cutting speed                   ≤500mm/s
Cutting speed                   ≤1000 mm/s
The accuracy of repeated orientataion    ≤±0.025mm
Cooling way                      Circulation water cooling
Power supply                    220V/50Hz/lkVA
Net weight                        399kg/430kg/450kg
Dimension                        1670x1450x1280mm  1920x1470x1220/1920x1420x1280
