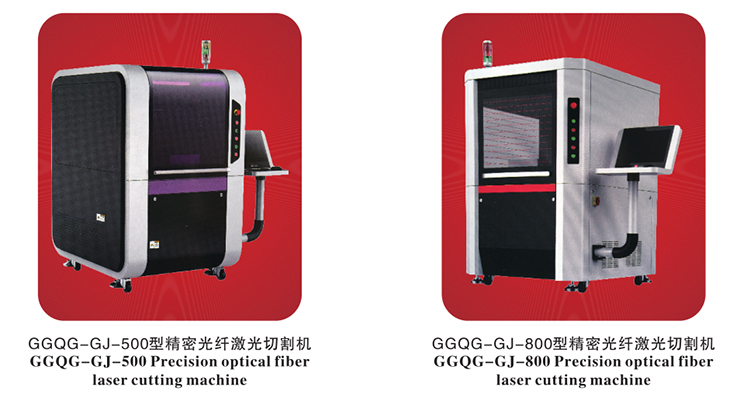

High Precision Fiber laser cutting machine

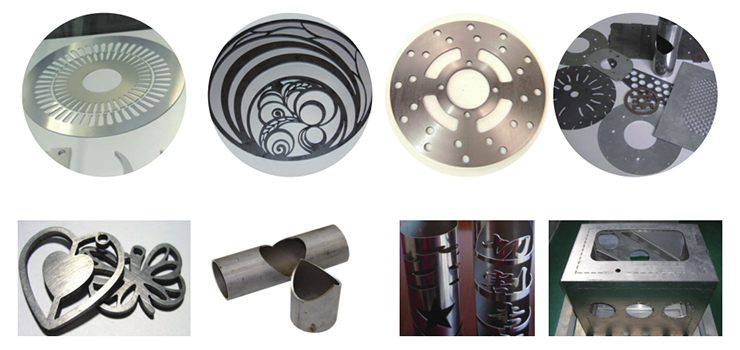

■Sample display

■ Applicable materials
Mainly used for rapid cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized plate, pickling plate, aluminum plating zinc plate, copper and other metal materials.

■ Industry application

Application in sheet metal processing, aviation, aerospace,electronics, electrical appliances, machinery, automobile, subway parts, precision parts, ship, metallurgy equipment, elevator, home appliances, gifts, processing tools, decoration, advertising, metal foreign processing manufacturing industry.

■Main technical parameters

Model parameters:                    GGQG-GJ-500  GGQG-GJ-800
Laser output power:                  500W  800W
Lasar wavelength:                     1080 nm   1080 nm
Laser medium:                           YV04   YV04
Beam quality:                            <0.373mrad  <0.373mrad
Minimum line width:                ≤0.15mm  ≤0.15mm
Maximum air velocity:              60m/min  60m/min
X axis Max stroke:                    300mm  400mm
Y axis Max stroke:                    500mm  600mm
Z axis Max stroke:                    50-70mm  50-70mm
Max cutting range (XY axis):    300mm x 500 mm   400mm x 600 mm
Table axial positioning accuracy:                      ≤±0.05mm/m     ≤±0.05mm/m
Table repeated positioning accuracy:               ≤±0.03mm/m  ≤±0.03mm/m
Maximum cutting thickness of carbon steel:    6mm (Highqualitycutting0.5-5mm)                                                                 8mm(High quality cutting 0.5-6mm)
Max stainless steel cutting thickness:    4mm(High quality cutting 0.5-3mm)  6mm(High quality cutting 0.5-5mm)
Power supply requirements:    220V/50HZ 380V/50HZ
