Laser marking machine

■ Equipment Performance

    The machine adopts imported radio frequency laser (metal seal)and imported speedy garol scanning system. High quality of light beam, long use time, and stable equipment performance exemptsmaintenance. It is speedy and precious. Marking has non-tonchedprocess, permanent marklngeffect, humanized operation, and stable riuming. The proprietary control software may compatible software output of AutoCAD, CorelDRAW, Photoshop etc. It can realized automatic edition and correction of characters,signs,graphs, images，bar codes，two-dimensional codes, automatically increased serial numbers. It can support various file formats like PLT，DXF, BMP, JPG, TTF，Al and so on. It may nse TTF fonts directly, and meets the demand of mass oa-line and off-line industrialized production in axletree industry.

■ Applicable fields

    Suitable for large-formal non-metallic materials (leather,wood, plastic,etc.) carving and cutting.

■Main technical parameters

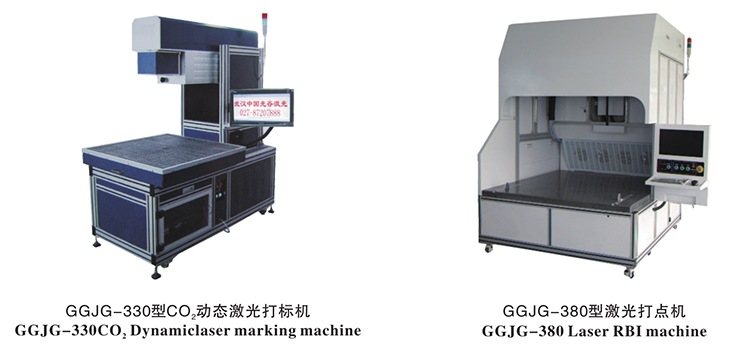

Type specification                            GGJG-330 GGJG-380

Wave length of laser                        10.6μm 10.6μm

Laser power                                     150W 180W 275W 180W 275W

Laser repetitiion frequency       1kHz - 100kHz/1kHz- 130kHz

Marking scope                    400X400mm/800X800mm ******可到1200X1200mm

Marking speed                   ≤8000mm/s

Repetition precision           0.01mm

Cooling way                       (Circulation water cooling)

Power supply                     AC220V/50HZ/5KVA    AC220V/50HZ/5KVA

AC3800V/5OHz/7KVA       AC220V/50HZ/5KVA    AC3800V/50HZ/7KVA
